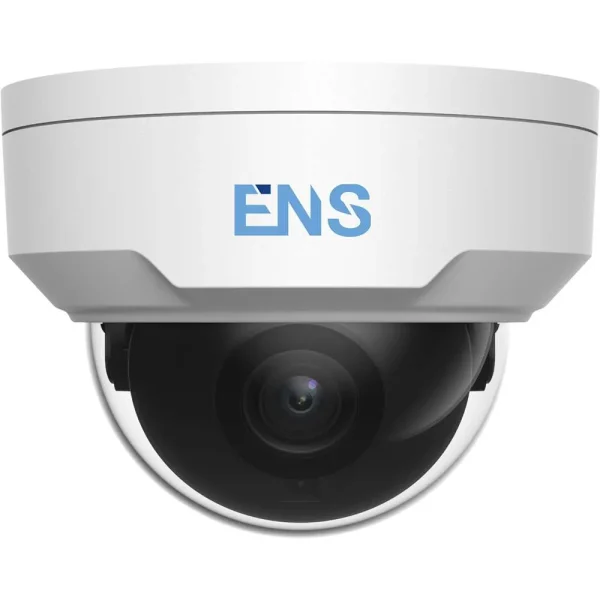

EM-IPCP4D3-F28-LH-AI || Emerald, IPC, 4MP, Dome, 2.8mm Fixed

$181.50

IP Camera,4MP@30FPS,Fixed Dome,2.8mm,1/3”,IR(98ft),True WDR,Starlight,FD,PC,Audio/Alarm,SD Slot, IK10

SKU: EM-IPCP4D3-F28-LH-AI Categories: , , ,

4MP HD LightHunter IR Fixed Dome Network Camera EM-IPCP4D3-F28-LH-AI Features:

  • High-quality image with 4MP, 1/3″CMOS sensor
  • 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures ultra-high image quality in a low illumination environment
  • 120dB True WDR technology enables a clear image in a strong light scene
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply
  • DC 12V±25%, PoE (IEEE 802.3af)

General:

Power consumption: Max 4.5W
Dimensions (Ø x H): Φ108.7 x 81.1mm (Ø 4.3” x 3.2”)
Net Weight: 0.42kg (0.93lb)
Material: Metal Plastic
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 2KV
Ingress Protection: IP67
Vandal Resistant: IK10

Network:

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
Client: ENSStation, ENSView, ENSLive
Plug-in required live view: IE9 , Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0 , Firefox 58.0 , Edge 16 , Safari 11

This 4MP HD LightHunter IR Fixed Dome Network Camera EM-IPCP4D3-F28-LH-AI in Emerald Series is highly recommended to work with:

Emerald Networking Video Recorder ( NVR)

Weight 1.223564 lbs
Dimensions 5.2362233 × 5.2362233 × 5.3149635 in

Products Features

LightHunter

Built in Mic

Face Capture

Human and Vehicle Classification

People Counting

Motion Detection

Challenges of AI Functions

Installation Restricted

Some AI algorithms may have high accuracy, but installations are subject to many restrictions.

Low Light Environments

1. Black and white images with blurry details under low illumination. 2. Limitations in color extraction and details often lead to low detection accuracy.

How to do AI monitoring at night?

How to do active deterrence at night?

How to capture face and other details through AI at night?

Complex Scenarios

Difficult to balance these 2 points:
1. The camera cannot detect the details of a complex scene. 2. It cannot view a large scene while detecting details.

How to balance panoramic and detailed AI monitoring?

How to efficiently monitor AI in corridors / corners?

How to balance large views and detailed monitoring?

All Metal Material

Adapt to more scenarios. Meet the requirements of almost all environments.

Power Supply

Provide power for other equipment such as buzzers and alarm lights. Save constructions costs and improve efficiency.

Advanced Hardware

Progressive BSI Senor and super large lens, more sensitive for low light environments.

Full Frame

High frame rate cameras provide smoother pictures, and easily meet the requirements of special scenarios.

Excellent Image Effect

LightHunter technology provides excellent image effects in low-light environments.

Color Hunter

Through a large sensor, big iris, and warm light LED, it delivers colorful pictures 24/7.

Efficiency

Easy to expand and maintain, while still being very compatible.

Reliability

One click diagnosis log and download/upload configuration capabilities. Network disconnect detection and ANR.

120dB True WDR

Keep a bright image in both the foreground and background.

AI Functions

Smart Intrusion Prevention, People Counting, Face Capture.

Smart Intrusion Prevention

99% accuracy with a reduce false alarm rate from AI model comparisons.

Reduced search times with trigger specific search

People Counting

Traditional People Counting

Deep Learning Algorithm People Counting

Perimeter Protection:

With advanced Perimeter Protection technology, ENS Emerald product line provide face detection, human and vehicle classification, and people counting technology. Utilize advanced intelligent analytics such as Line Crossing Detection, Region Intrusion, and Entrance/Exit Detection in order to detect potential threats and also reduce false alarms.

Advanced Features

Drag

Human and Vehicle Classification

  • Focus on human and vehicle classification for superior perimeter protection.
  • Actively detect in real time loitering and vandalism in various scenarios such as parks, cemeteries, school facilities, and gated communities.
  • Accurately detect human or vehicle, effectively reducing false alarms.

Built-In Mic

  • Enhanced one-way communication, allowing you to scare off intruders.
  • One-way audio, allowing for you to warn off intruders, trespassers, and prevent criminalities from occurring.

Perimeter Protection

  • Home Entrance and Exit Protection
  • Deter Asset Theft and Vandalism
  • Clear Images Both Day and Night
  • Home or Business Perimeter Protection

Intrusion Detection

  • Home Entrance and Exit Protection
  • Asset Theft and Vandalism Prevention
  • Clear Vivid Images and Intruder Deterrence
  • Home or Business Perimeter Protection

Face Capture

  • Recognize known thieves or criminals, protecting people and assets.
  • Identify VIP clients, improving your customer service.


People Counting

  • Track and process moving human body targets.
  • Valuable business intelligence data for peak service hours, allowing for effective customer service and efficient employee management.
  • Effective resource allocation and queue management in business retail environments.

Advanced Features

As the challenges have evolved, so have the solutions. ENS Titanium Series 4K security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance and Exit Monitoring / Home Security

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Emerald IP Series security cameras utilize Smart IR technology to provide clear visibility and excellent perimeter protection both day and night for effective home and business security.

SMB Loss Prevention and Asset Protection

24/7 monitoring with Smart IR provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Commercial Property and Tenant Protection

Utilize basic security and Smart IR, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property.
Provide basic safety and security with Emerald Series IP security cameras, in order to detect real threats in real-time, prevent vandalism, theft, and other criminalities.

Solution Applications

EFFECTIVE PERIMETER PROTECTION

LOSS PREVENTION AND BUSINESS INTELLIGENCE

THEFT AND VANDALISM PREVENTION

ASSET PROTECTION

FULL COLOR PROVIDING EFFICIENT FORENSIC DATA

TENANT AND PROPERTY PROTECTION

Downloads

📥 Specification Sheet

📥 User Manual

📥 Mobile Manual

📥 Quick Start

📥 CMS for Windows

📥 CMS for Mac

📥 IP Tool for Windows

ACCESSORIES

   UN-TRJB03GIN               UN-TRWM03DIN
