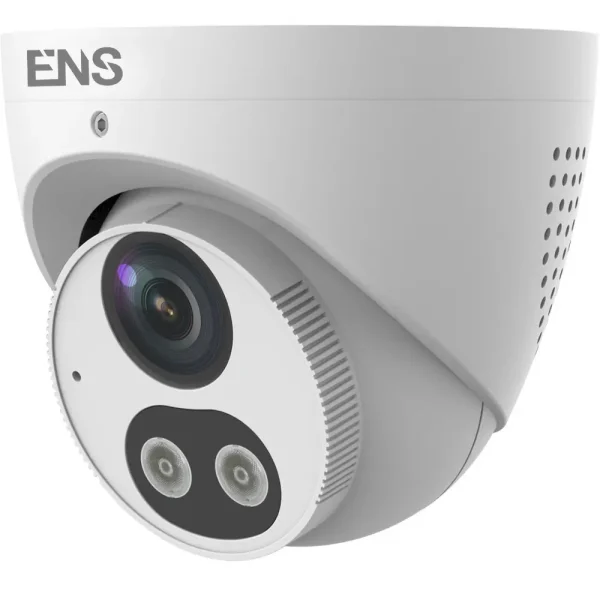

EM-IPCP4T4-F28-AD-AI || Emerald, IPC, 4MP, Turret, 2.8mm Fixed


IP Camera,4MP@30FPS,Fixed Turret,2.8mm,1/2.7”,IR(98ft),True WDR,Starlight,FD,PC,AD,Built-in mic&Speaker,SD Slot

SKU: EM-IPCP4T4-F28-AD-AI Categories: , , ,

4MP Fixed Eyeball IP Active Deterrence Camera EM-IPCP4T4-F28-AD-AI Features:

  • High quality image with 4MP, 1/2.7″CMOS sensor
  • 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, include cross line, intrusion, enter the area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds, lights, etc.
  • Supports active deterrence feature for smart intrusion prevention is triggered
  • Intelligent face capture
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • 120dB True WDR technology enables clear image in the strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic and Speaker
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply


Power consumption: Max 7.5W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (Ø x H): Φ111 x 95mm (Φ4.4” x 3.7”)
Weight: 0.43kg (0.948lb)
Material: Metal Plastic
Working Environment: -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV

This 4MP Fixed Eyeball IP Active Deterrence Camera EM-IPCP4T4-F28-AD-AI in Emerald Series is highly recommended to work with:

Emerald Networking Video Recorder ( NVR)

Weight 1.190495 lbs
Dimensions 5.2362233 × 5.2362233 × 5.3149635 in


Active Deterrence

Human/Vehicle Detection

People Counting

Face Capture

Built-In Mic

Built-In Speaker

Perimeter Protection:

As the challenges have evolved, so to have the solutions. ENS security provides full color at night security cameras with a variety of features to help combat and solve your challenges! These include:

Smart Intrusion Prevention

99% accuracy with a reduce false alarm rate from AI model comparisons.

Traditional Cameras: Everything pictured here will trigger a false alarm on a traditional camera, wasting time and resources.

Emerald IPC Camera: Only focuses on human, non-motor, and motor vehicles. Reduces false alarm rate to <1%.

Smart Intrusion Prevention

The Smart Intrusion Prevention Process: 1.) The camera detects movement, 2.) A.I. compares motion source to existing models, 3.) Camera identifies targets and ignores movement from non-target sources, 4.) Event alarm is triggered.

Face Capture

Abnormal Angle Faces

Captures faces at non-direct angles, such as faces at side angles or bowed heads

Small Faces

Captures small faces, just need over 30×30 pixels

Concentrated Faces

Captures multiple faces in the same picture

People Counting

Traditional People Counting

False Alarm

Captures multiple faces in the same picture

Deep Learning People Counting

False Alarm

People Counting and Surveillance Monitoring

Advanced Features


Human and Vehicle Classification

  • Focus on human and vehicle classification for superior perimeter protection.
  • Actively detect in real time loitering and vandalism in various scenarios such as parks, cemeteries, school facilities, and gated communities.
  • Accurately detect human or vehicle, effectively reducing false alarms.

Built-In Mic

  • Enhanced one-way communication, allowing you to scare off intruders.
  • One-way audio, allowing for you to warn off intruders, trespassers, and prevent criminalities from occurring.

Perimeter Protection

  • Home Entrance and Exit Protection
  • Deter Asset Theft and Vandalism
  • Clear Images Both Day and Night
  • Home or Business Perimeter Protection

Intrusion Detection

  • Home Entrance and Exit Protection
  • Asset Theft and Vandalism Prevention
  • Clear Vivid Images and Intruder Deterrence
  • Home or Business Perimeter Protection

Face Capture

  • Recognize known thieves or criminals, protecting people and assets.
  • Identify VIP clients, improving your customer service.

People Counting

  • Track and process moving human body targets.
  • Valuable business intelligence data for peak service hours, allowing for effective customer service and efficient employee management.
  • Effective resource allocation and queue management in business retail environments.

Advanced Features

As the challenges have evolved, so have the solutions. ENS Titanium Series 4K security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance and Exit Monitoring / Home Security

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Emerald IP Series security cameras utilize Smart IR technology to provide clear visibility and excellent perimeter protection both day and night for effective home and business security.

SMB Loss Prevention and Asset Protection

24/7 monitoring with Smart IR provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Commercial Property and Tenant Protection

Utilize basic security and Smart IR, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property.
Provide basic safety and security with Emerald Series IP security cameras, in order to detect real threats in real-time, prevent vandalism, theft, and other criminalities.

Solution Applications








📥 Specification Sheet

📥 User Manual

📥 Mobile Manual

📥 CMS for Windows

📥 CMS for Mac

📥 IP Tool for Windows
