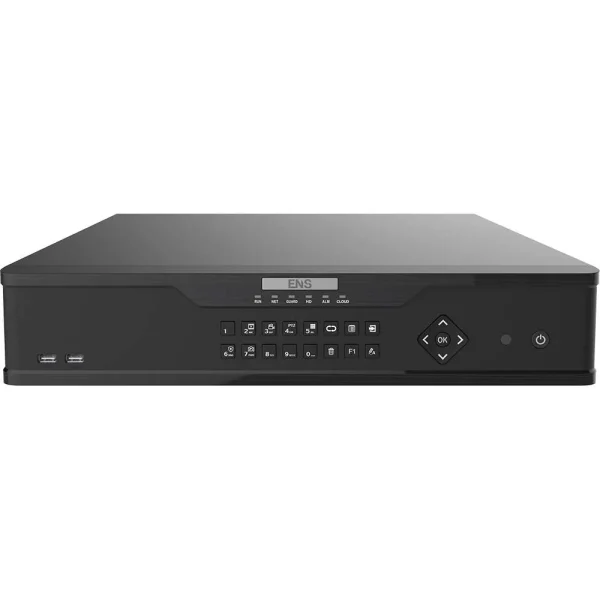

EM-NVRP432 || Emerald, NVR, 12MP, 32CH, 4X SATA PORTS


NVR,32CH,384/384Mb,12MP,RAID,HDMI1/VGA, HDMI2, Audio/Alarm,4 SATA, 1 ESATA

SKU: EM-NVRP432 Categories: , , ,

Emerald NVR Professional Line 32CH 4K 8MP Audio/Alarm 4SATA EM-NVRP432 Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 16/32-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840×2160) resolution
  • HDMI1, HDMI2, VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Support RAID 1, 5
  • 4 SATA HDDs, Up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

General: Power Consumption: ≤ 25 W (without HDD) Working Environment: -10°C~ 55°C ( 14°F~ 131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H): 442mm ×426mm× 89mm (17.4″ × 16.8″× 3.5″) Weight (without HDD): ≤ 5.7Kg (12.57lb) Network: Incoming Bandwidth: 384Mbps Outgoing Bandwidth: 384Mbps Remote Users: 128 Protocols: P2P, UPnP, NTP, DHCP, PPPoE External Interface Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces Serial Interface: 1 x RS485, 1 x RS232 USB Front panel: 2 x USB2.0 USB  Rear panel: 1 x USB3.0 Alarm In: 16-ch Alarm Out: 4-ch

This Emerald NVR Professional Line 32CH 4K 8MP Audio/Alarm 4SATA EM-NVRP432 in Emerald Series is highly recommended to work with:

Emerald Networking/ Internet Protocol Security Camera ( IPC)

Weight 16.027587 lbs
Dimensions 22.5590673 × 22.1653663 × 7.9527602 in


📥 Specification Sheet

📥 User Manual

📥 Mobile Manual

📥 Quick Start

📥 CMS for Windows

📥 CMS for Mac

📥 IP Tool for Windows
