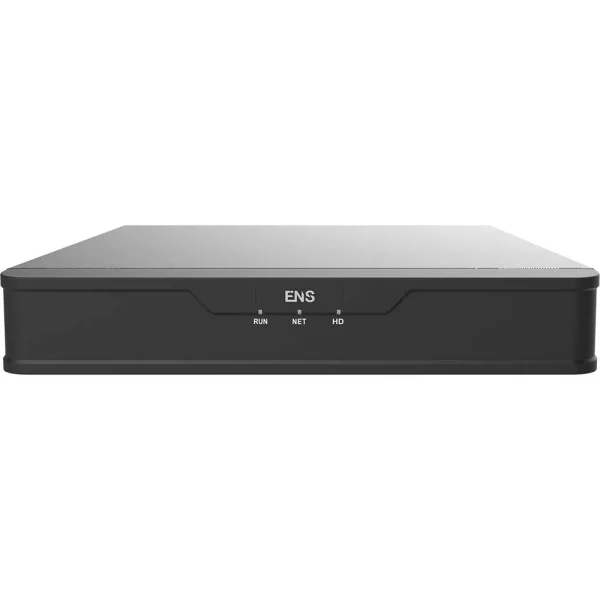

EM-NVRP432-P16 || Emerald, NVR, 12MP, 32CH, 4X SATA PORTS


NVR,32CH(16PoE),320/320Mbps,12MP,RAID,HDMI/VGA,Audio/Alarm,4 SATA

SKU: EM-NVRP432-P16 Categories: , , ,

32CH 12MP 4SATA NVR Emerald Professional Line EM-NVRP432-P16 Features:

  • Support Ultra H.265/H.265/H.264 video formats
  • 32-channel input
  • Up to 12 Megapixels resolution recording
  • Plug & Play with 16 independent PoE network interfaces
  • Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840×2160) resolution
  • HDMI and VGA independent outputs provided
  • 4 SATA HDDs, Up to 10TB for each HDD
  • Support RAID 1, 5
  • Alarm In 16-ch/ Alarm Out 4-ch
  • People counting supported
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Alert Alarm for IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard disk space low/full
  • VCA smart detection and search including face detection and comparison, intrusion detection, cross-line detection, defocus detection, scene change detection, object left behind, object removed, auto-tracking


Power Supply 100~240V AC
Power Consumption: ≤ 15 W (without HDD)
Working Environment -10°C~ 55°C ( 14°F~ 131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 400mm × 363mm × 74mm (15.7″ × 14.3″× 2.9″)
Weight (without HDD) ≤5Kg (11.02lb)


Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128

Emerald NVR Professional Line 32CH 12MP 4SATA in Emerald Series highly recommend works with:

Emerald Networking/ Internet Protocol Security Camera ( IPC)

Weight 12.356895 lbs
Dimensions 19.0944985 × 18.503947 × 7.6771695 in


Specification Sheet

User Manual

Mobile Manual

Quick Start

CMS for Windows

CMS for Mac

IP Tool for Windows
