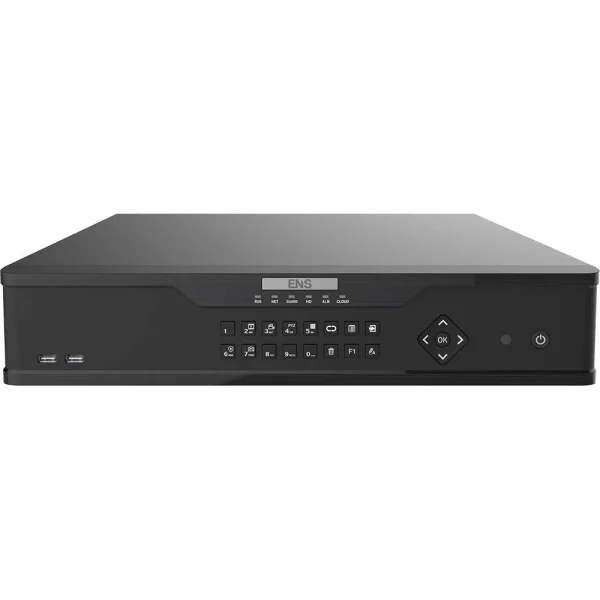

EM-NVRP864 || Emerald, NVR, 12MP, 64CH, 8X SATA PORTS


NVR,64CH,384/384Mb,12MP,RAID,HDMI1/VGA, HDMI2, Audio/Alarm, 8 SATA, 1 ESATA

SKU: EM-NVRP864 Categories: , , ,

Emerald NVR Professional Line 64CH 4K 8MP Audio/Alarm 8SATA EM-NVRP864 Features:

  • Support Ultra H.265/H.265/H.264 video formats
  • 64-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840×2160) resolution
  • HDMI1, HDMI2, VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Support RAID 0, 1, 5, 6, 10
  • 8 SATA HDDs, Up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • Support N 1 Hot spare
  • Support for 12V Power output
  • ANR technology to enhance the storage reliability
  • Support cloud upgrade

General: Power Consumption: ≤ 25 W (without HDD) Working Environment: -10°C~ 55°C ( 14°F~ 131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H): 442mm ×426mm× 89mm (17.4″ × 16.8″× 3.5″) Weight (without HDD) ≤ 5.7Kg (12.57lb) Network: Incoming Bandwidth: 384Mbps Outgoing Bandwidth: 384Mbps Remote Users: 128 Protocols: P2P, UPnP, NTP, DHCP, PPPoE External Interface: Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces Serial Interface: 1 x RS232, 1 x RS485 USB Interface: Front panel, 2 x USB2.0,Rear panel: 1 x USB3.0 Alarm In: 16-ch Alarm Out: 4-ch

This Emerald NVR Professional Line 64CH 4K 8MP Audio/Alarm 8SATA EM-NVRP864 in Emerald Series is highly recommended to work with:

Emerald Networking/ Internet Protocol Security Camera ( IPC)

Weight 16.986597 lbs
Dimensions 22.5590673 × 22.1653663 × 7.9527602 in


Specification Sheet

User Manual

Mobile Manual

Quick Start

CMS for Windows

CMS for Mac

IP Tool for Windows
