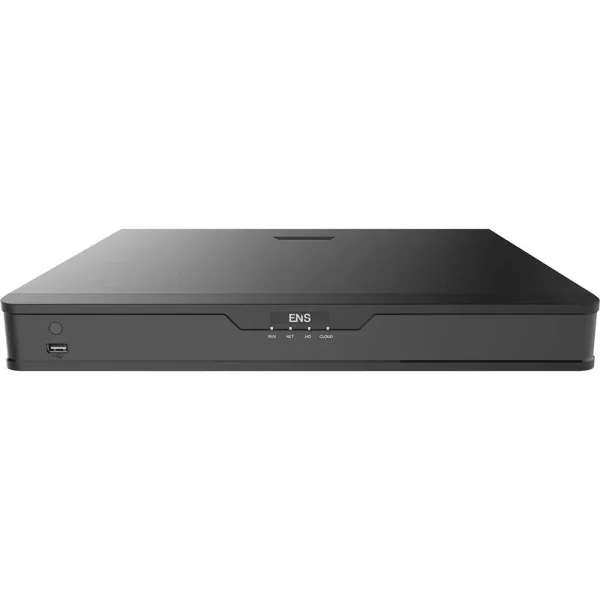

EM-NVRV432-P16 || Emerald, NVR, 8MP, 32CH, 4X SATA PORTS


NVR,32CH(16POE),160/64Mb,4K,HDMI/VGA,Audio/Alarm,4 SATA

SKU: EM-NVRV432-P16 Categories: , , ,

32CH 4K Audio/Alarm 4SATA Emerald NVR Value Line EM-NVRV432-P16 Features:

  • Support Ultra265/H.265/H.264 video formats
  • 32-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 4 SATA HDDs, up to 10TB for each HDD
  • Alarm in/Alarm Out
  • ANR technology to enhance the storage reliability
  • Support cloud upgrade

External Interface:

Network Interface: 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface: Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Serial Interface: 1 x RS485
Alarm In: 16-ch
Alarm Out: 4-ch


Power Supply: 100 ~ 240 V AC
Power Consumption: ≤15W (without HDD)
Working Environment: -10°C~ 55°C ( 14°F~ 131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H): 400mm ×362mm × 74mm (15.7″ × 14.2″ ×2.9″)
Weight (without HDD) ≤5kg (11.02lb)


Incoming Bandwidth: 160Mbps
Outgoing Bandwidth: 64Mbps
Remote Users: 128
Protocols: P2P, UPnP, NTP, DHCP, PPPoE


Decoding format: Ultra265/H.265/H.264
Live view/Playback: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability: 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30

This 32CH 4K Audio/Alarm 4SATA Emerald NVR Value Line EM-NVRV432-P16 in Emerald Series is highly recommended to work with:

Emerald Networking/ Internet Protocol Security Camera ( IPC)

Weight 13.161581 lbs
Dimensions 19.0944985 × 18.503947 × 7.6771695 in


Specification Sheet

User Manual

Mobile Manual

Quick Start

CMS for Windows

CMS for Mac

IP Tool for Windows
